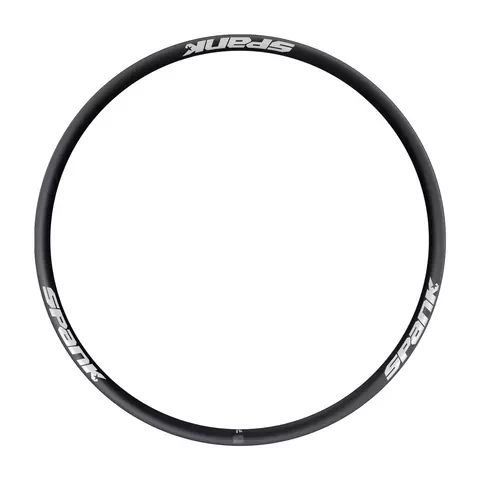

A high-performance alloy rim designed for freeride, and downhill race use
Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
Shotpeen finish to increase fatigue life and make it more durable
RECOMMENDED FOR: ASTM 5, All mountain, trail, free ride, DH
RIDER TYPE: HEAVY TO LIGHT RIDER: Heavy to Light Impact
Without rim strip


HOLE COUNT:32
SIZES (inches):24 / 26 / 27.5 / 29
WEIGHT +/- (g):435 / 480 / 500 / 525
INNER WIDTH (mm):28
OUTER WIDTH (mm):33
PROFILE HEIGHT (mm):22
ETRTO:507x28 / 559x28 / 584x28 / 622x28
ERD++ (mm):477++ / 529++ / 554++ / 591++
TUBELESS:Tubeless Ready
VALVE:F/V Presta
TIRE FIT:1.9” to 2.5”
FEATURES:Bead Bite anti-burp, OohBah Inverted Inner Wall, Dynamal Alloy
++:  SPANK ERD= Rim diameter (mm) with 2x spoke bed thickness (mm) included.  (++) = add your own nipple head height in mm x2
